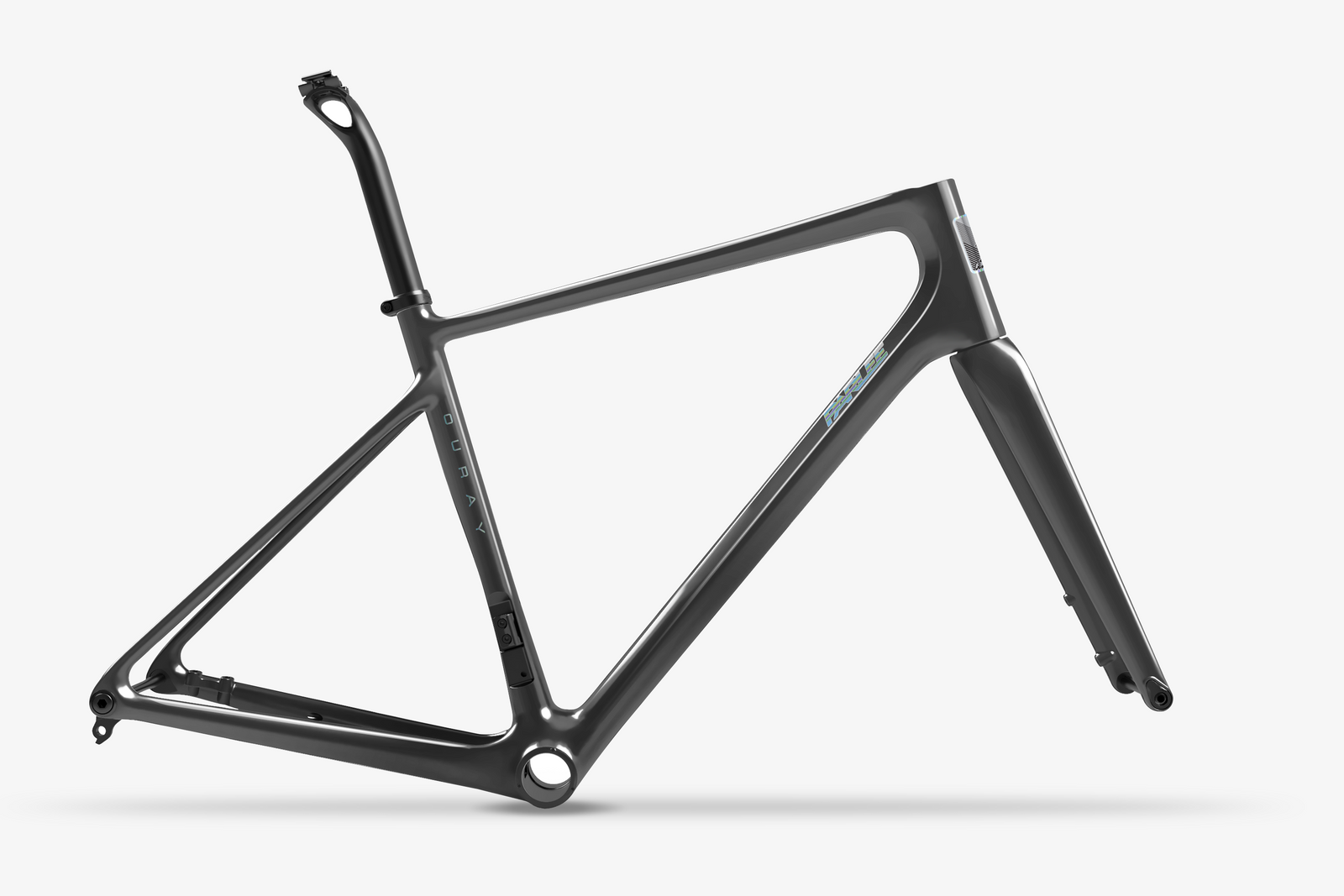

OURAY FRAMESET

UD MONOCOQUE CARBON FRAME AND FORK

$4,790

The Ouray Frameset utilizes our proprietary carbon layup, engineered to provide durable strength without excess weight. A refined unidirectional monocoque structure ensures responsive handling and efficient power transfer while remaining impressively lightweight.

View Size Chart
Loading sizes...

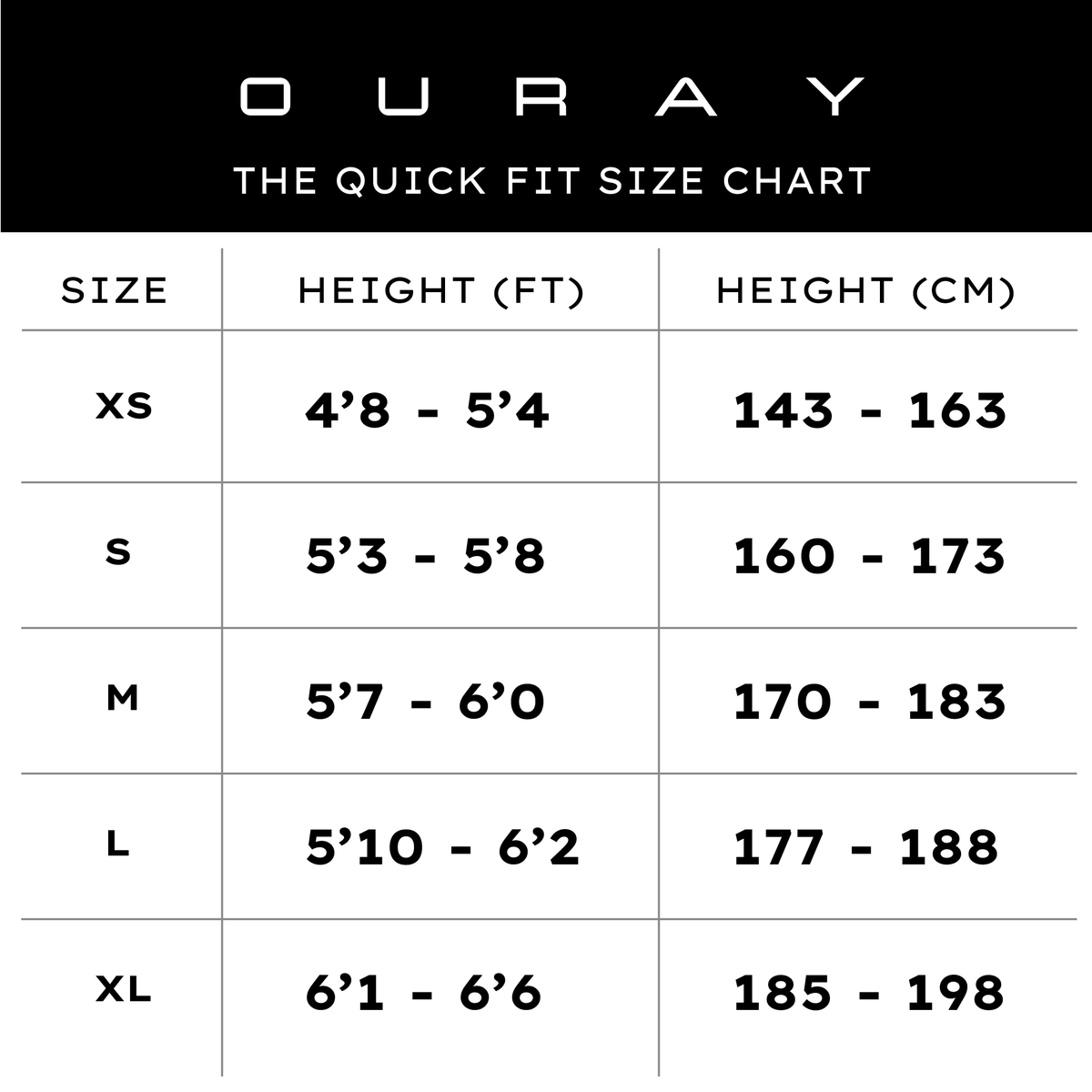

Size Chart

Real Speed for Real Roads.

Built using our proprietary carbon layup process, the frame is carefully engineered to reduce fatigue while maintaining the stiffness needed for confident power transfer. Material is placed with purpose, balancing lightweight performance with the stability required for modern road riding.

At the heart of the Ouray is a precision-engineered, unidirectional monocoque construction that delivers a smooth, composed ride quality. Strategic layup tuning allows for vertical compliance to absorb road vibration and surface imperfections, while preserving lateral stiffness through the bottom bracket and head tube for responsive handling.

The result is a frameset that feels calm and predictable, even on rough pavement or during all-day efforts.

The Finest Details

Detailed product information
  • Frame material
    One-piece, uni-directional monocoque carbon frame and fork
  • Weight
    830g (size M)
  • Fork
    Carbon, tapered steerer
  • Seatpost
    Parlee Carbon Seatpost, 0° offest, 31.6mm diameter

TECH & GEO SPECIFICATIONS

Frame Geometry

XS
S
M
L
XL
TTLength (virtual)
507
526
547
568
588
Stack
536
558
579
606
628
Reach
363
366
375
382
393
Head Angle
70.75
71
71.5
72
72.5
Seat Tube Angle
75
74
73.5
73
72.5
ST Length (Actual)
415
455
492
537
574
Chainstay Length
420
420
420
420
420
BB Drop
80
80
80
80
77
Fork Rake
53
53
45
45
45
Standover Height
693
728
759
798
831
Head Tube Length
125
147
164
191
214
Front Center
584
592
595
606
619
Wheelbase
991
999
1002
1013
1027
Fork Length
380
380
380
380
380
