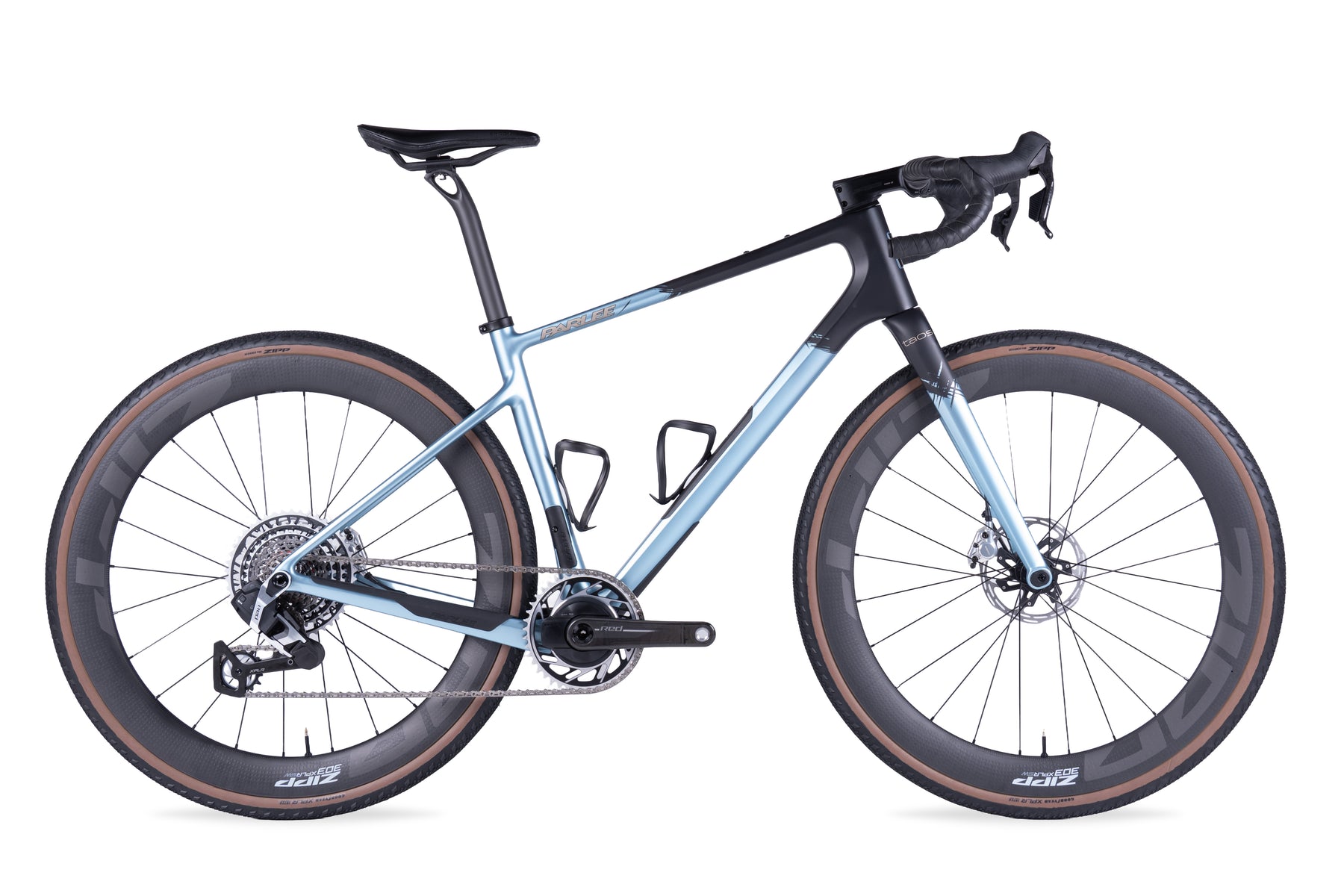

All-day fast. Ready for Adventure.

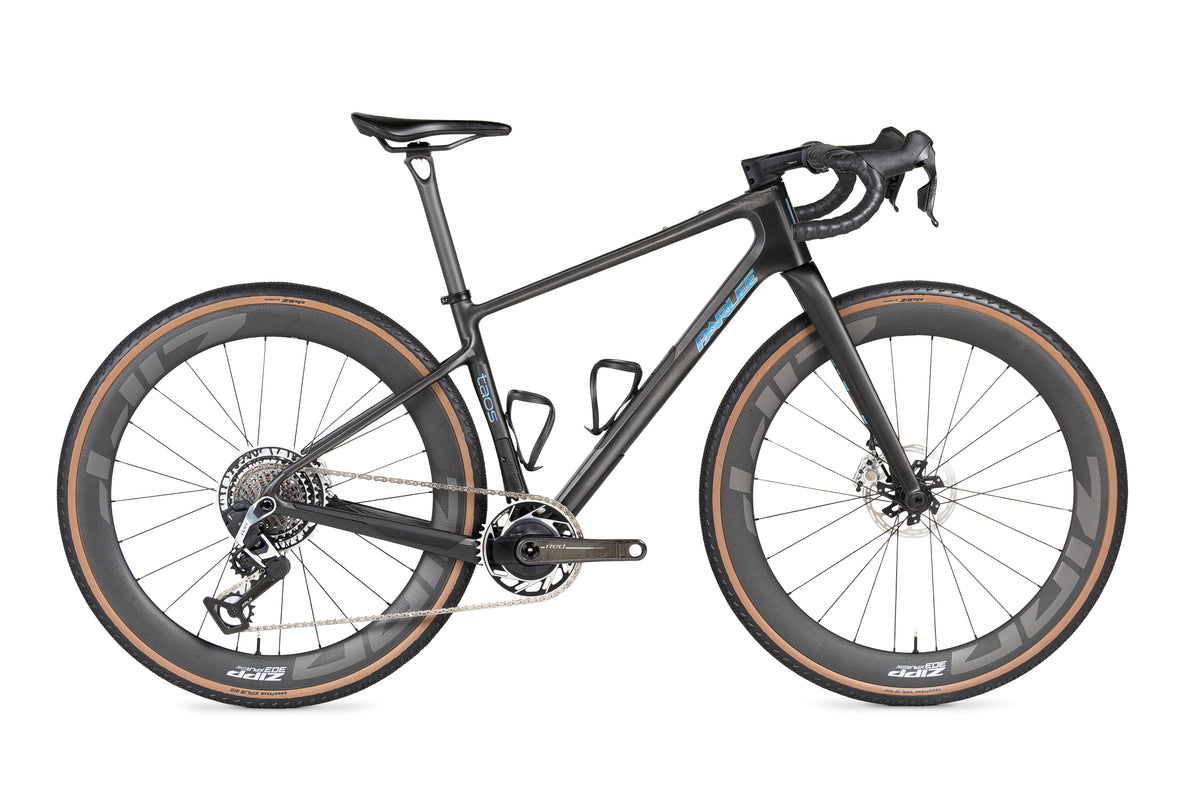

This Taos TIER ONE build leaves nothing to chance. The SRAM RED XPLR AXS drivetrain delivers crisp, wireless precision and real-time power data through its integrated powermeter, paired with a 42T chainring and 10–46T cassette for perfect range across varied terrain. ZIPP 303 XPLR SW wheels paired with Goodyear XPLR Inter tires deliver a smooth, fast ride while staying remarkably light and ready for any terrain.

The Taos’ modern long-reach, low-BB, slack head-tube geometry makes the ride feel steady at speed, confident when pointing downhill, yet responsive through tighter corners. With a chainstay length of 430mm and head-tube angles in the ~ 68.75–69.75° range, the platform strikes a sublime balance between stability and agility.

Thanks to clearance for up to 50mm tires and suspension-corrected geometry (adjustable fork rake via flip-chip, rigid or forked setups), the Taos adapts to everything from fast rolling hard pack to rough gravel, and even single track.

Ideal ride surface? Think smooth segues into open gravel roads, forest service tracks, canyon descents and back onto tarmac — this bike is built for long-haul versatility and spirited adventure wherever your pedals take you.

The Finest Details

Detailed technical specifications
Frame

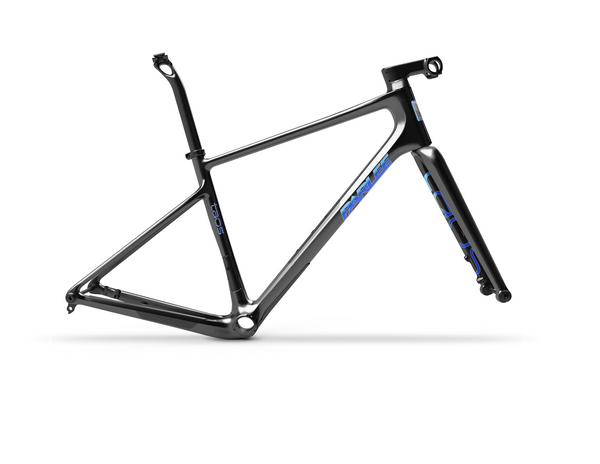

One-piece, UD (uni-directional) carbon monocoque frame and fork, 142mm thru-axle, UDH compatible, flat mount disc

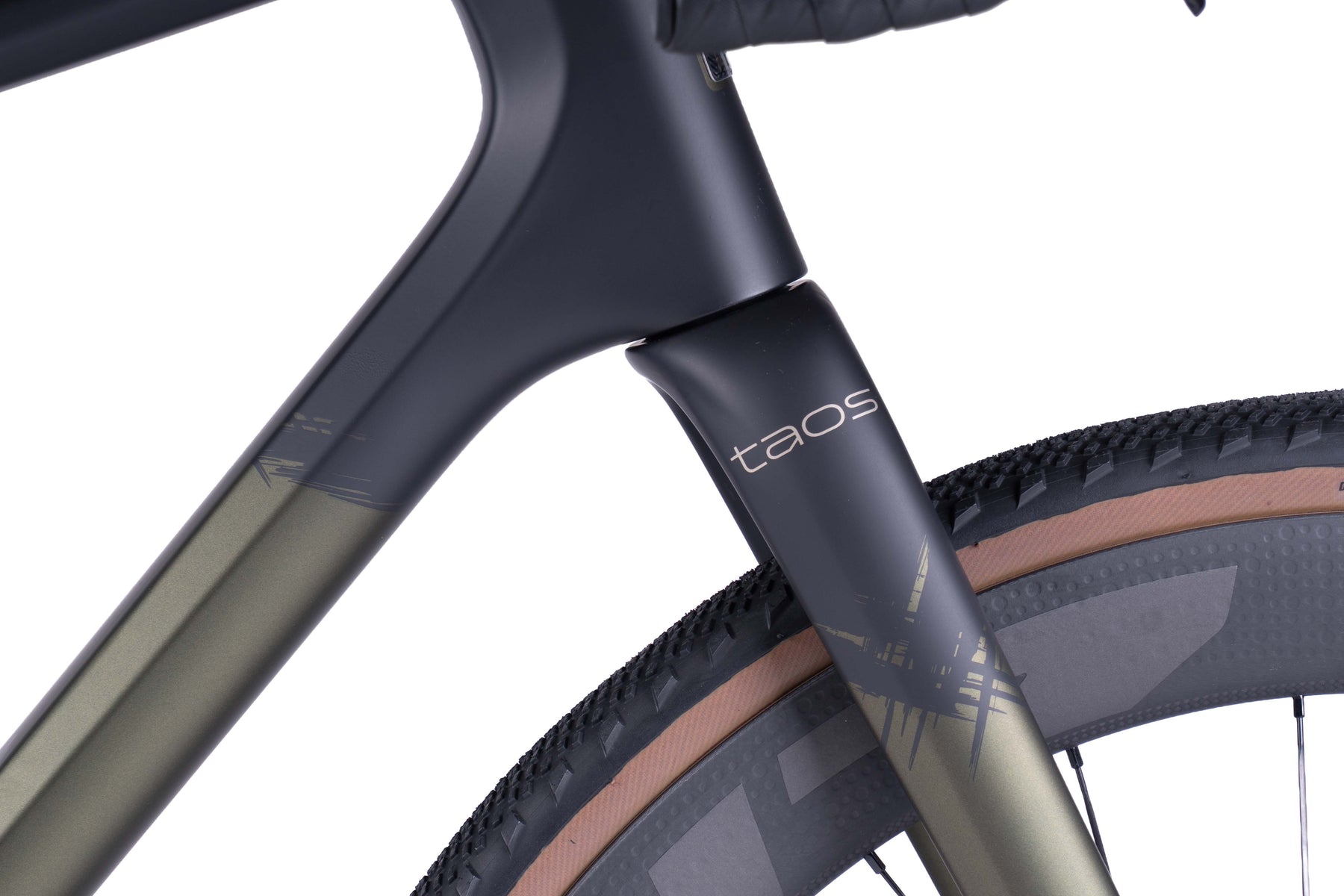

Fork

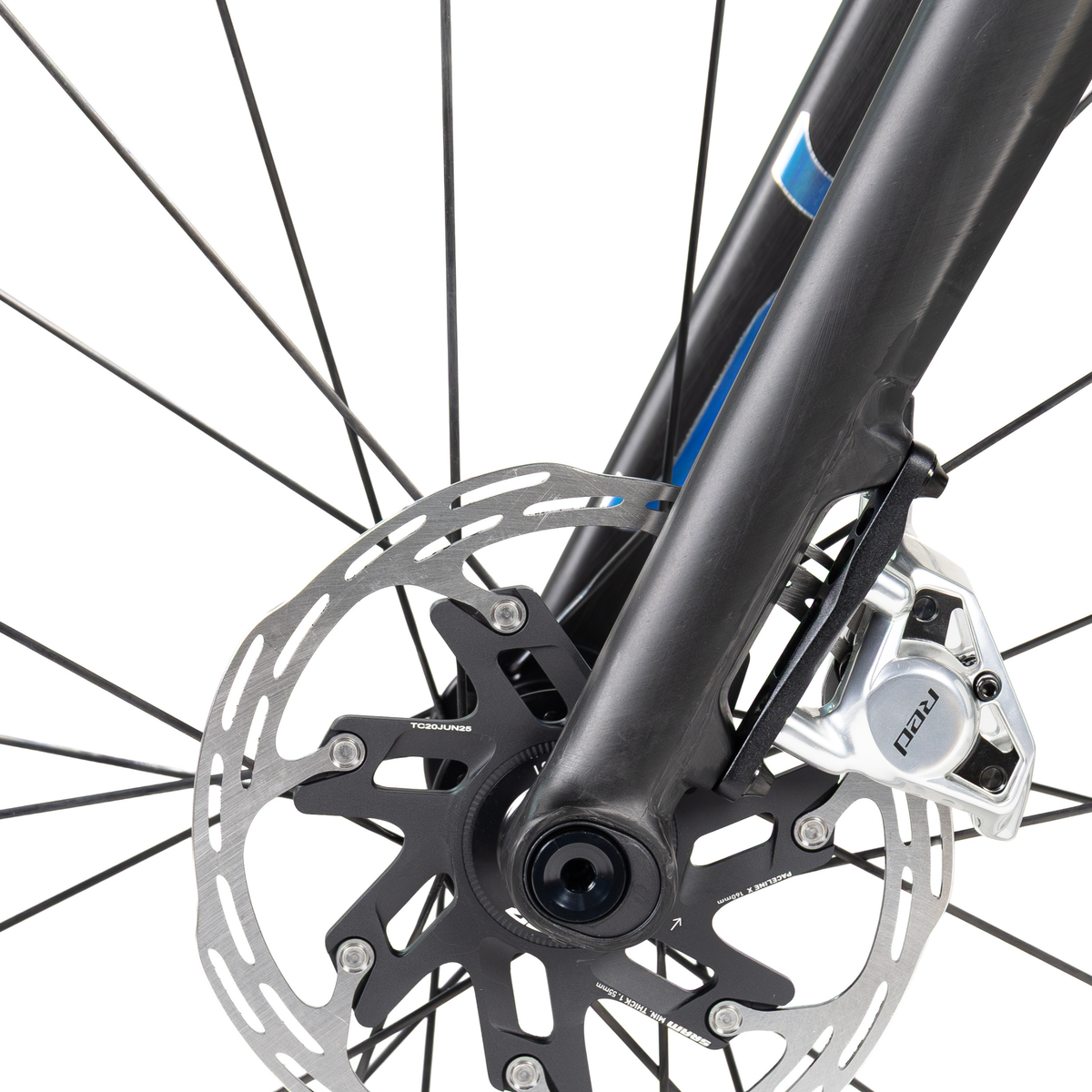

Full carbon, front axle Flip-Chip 45/51mm, integrated crown race, hidden cabling, 100mm thru-axle, 160/180 rotor compatible
Drivetrain
SRAM RED XLPR AXS electronic groupset
Brakes (Front & Rear)
SRAM RED AXS, hydraulic disc

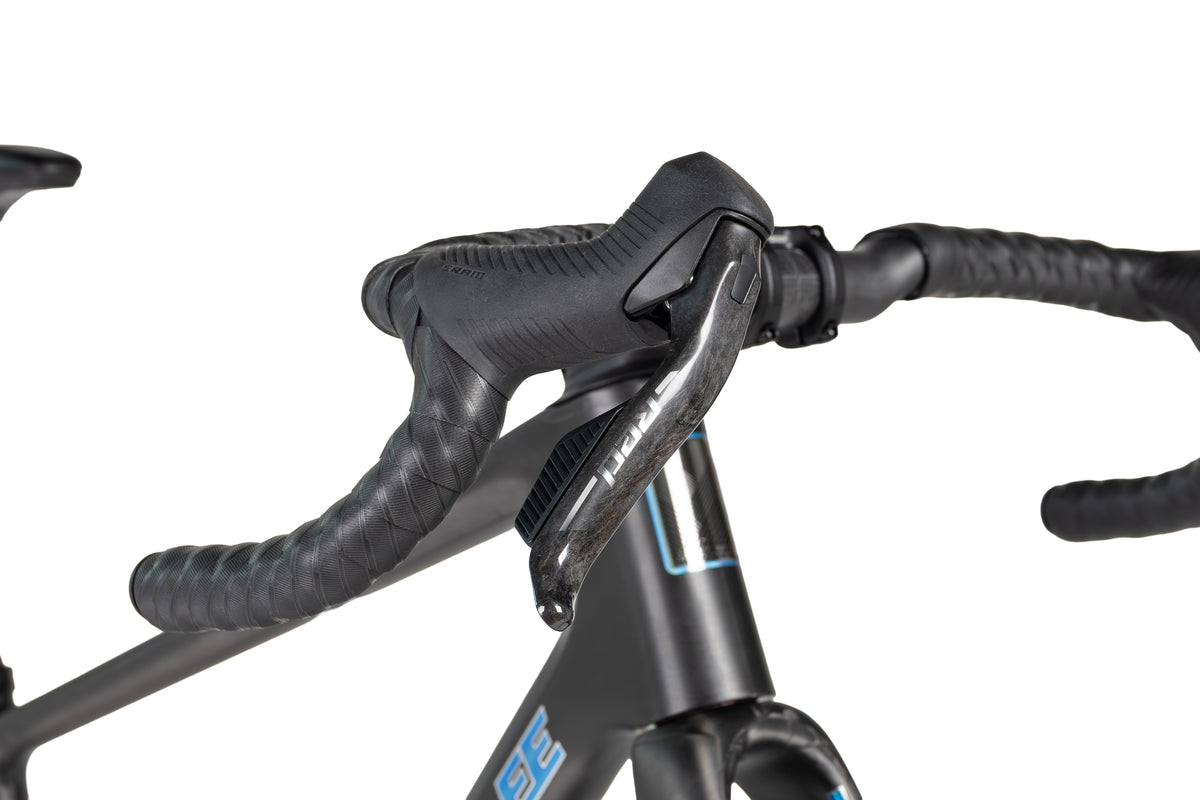

Shift Levers
SRAM RED AXS, hydraulic disc

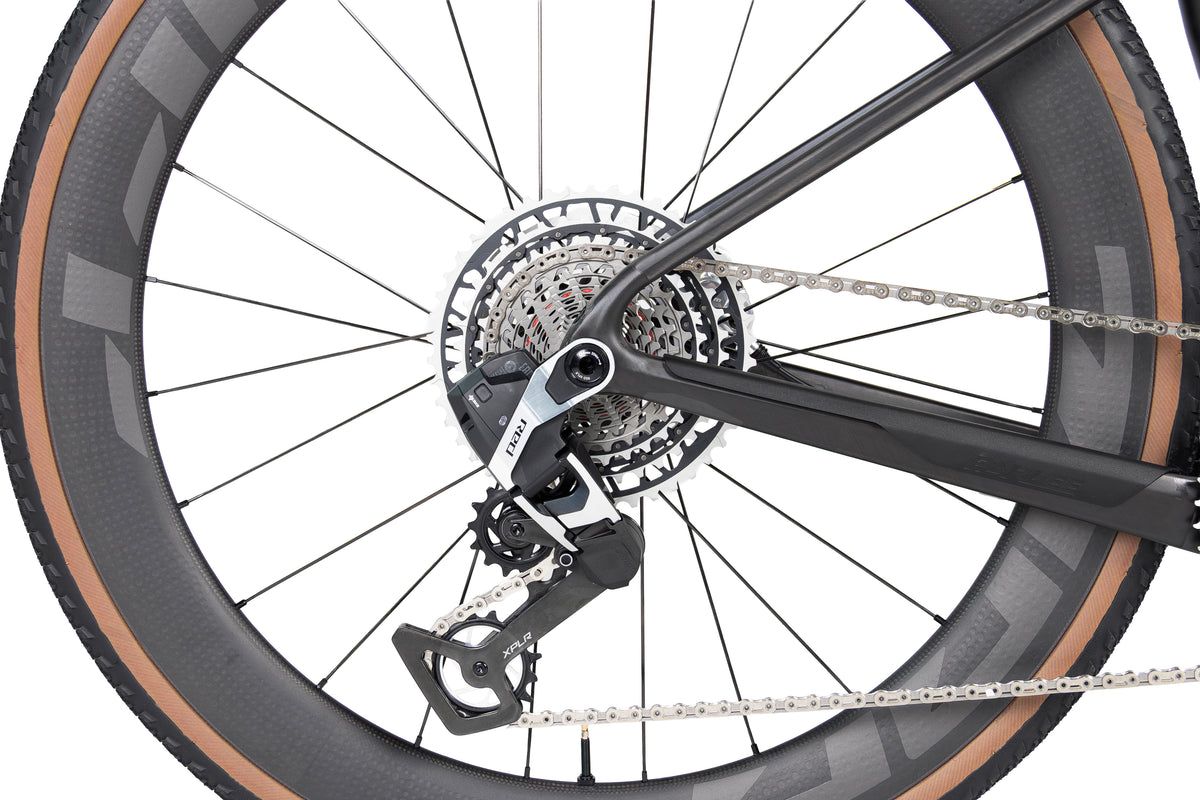

Rear Derailleur
SRAM Red XPLR AXS, 13sp
Cassette
SRAM RED XPLR, 10–46T, 13sp
Chain
SRAM RED Flattop, 12/13-speed

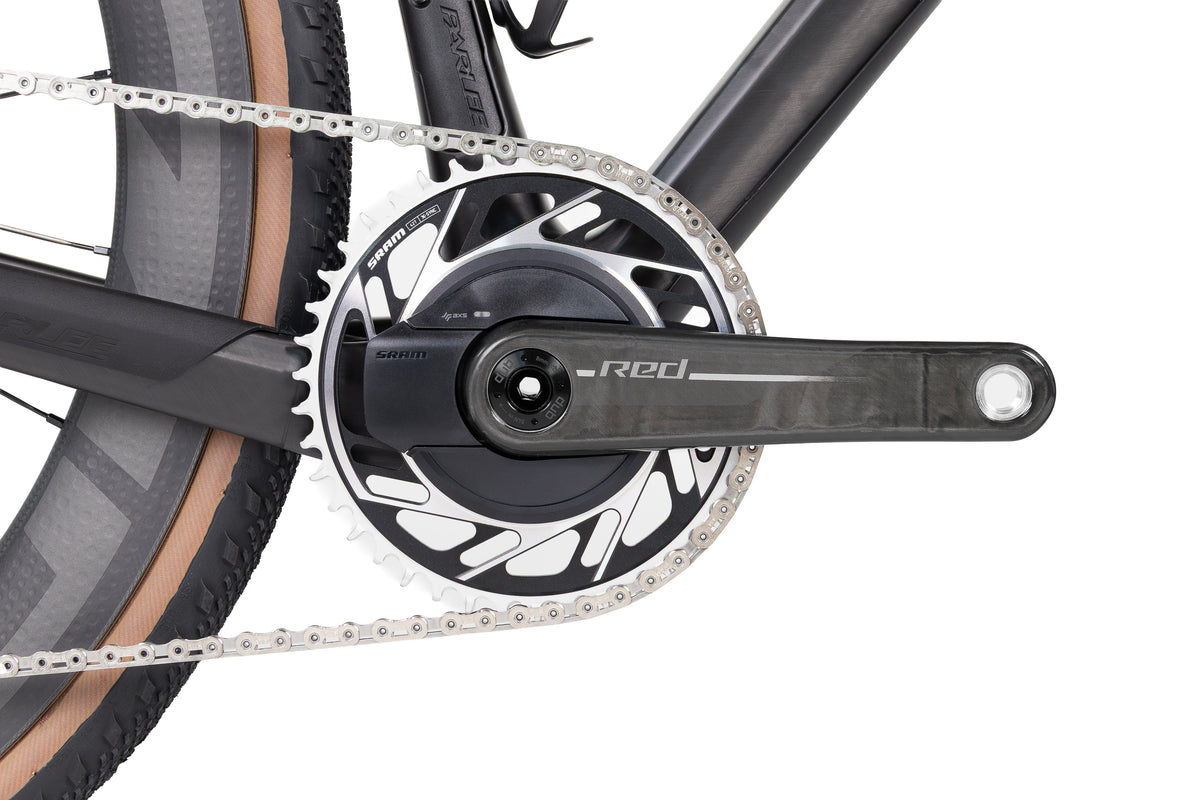

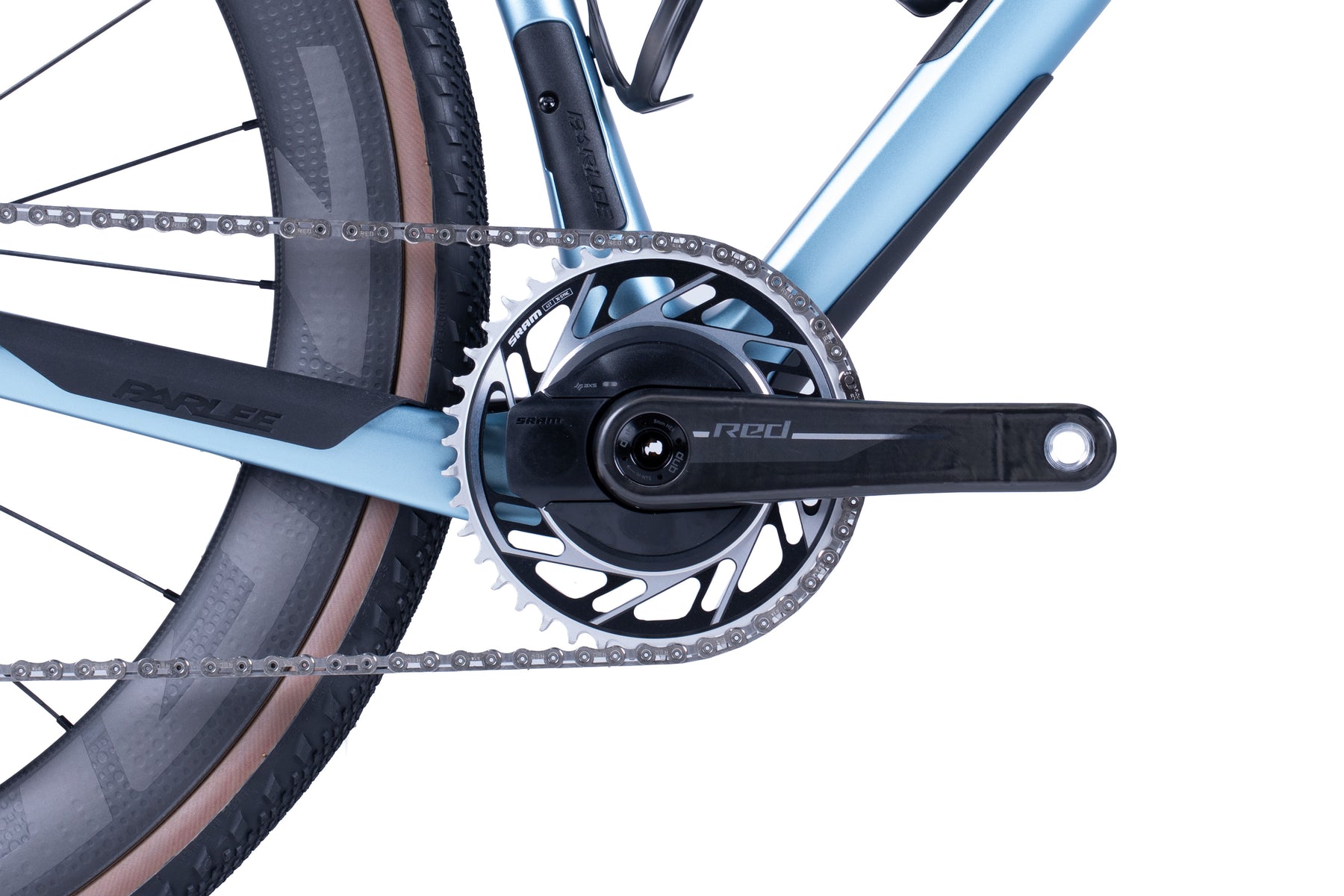

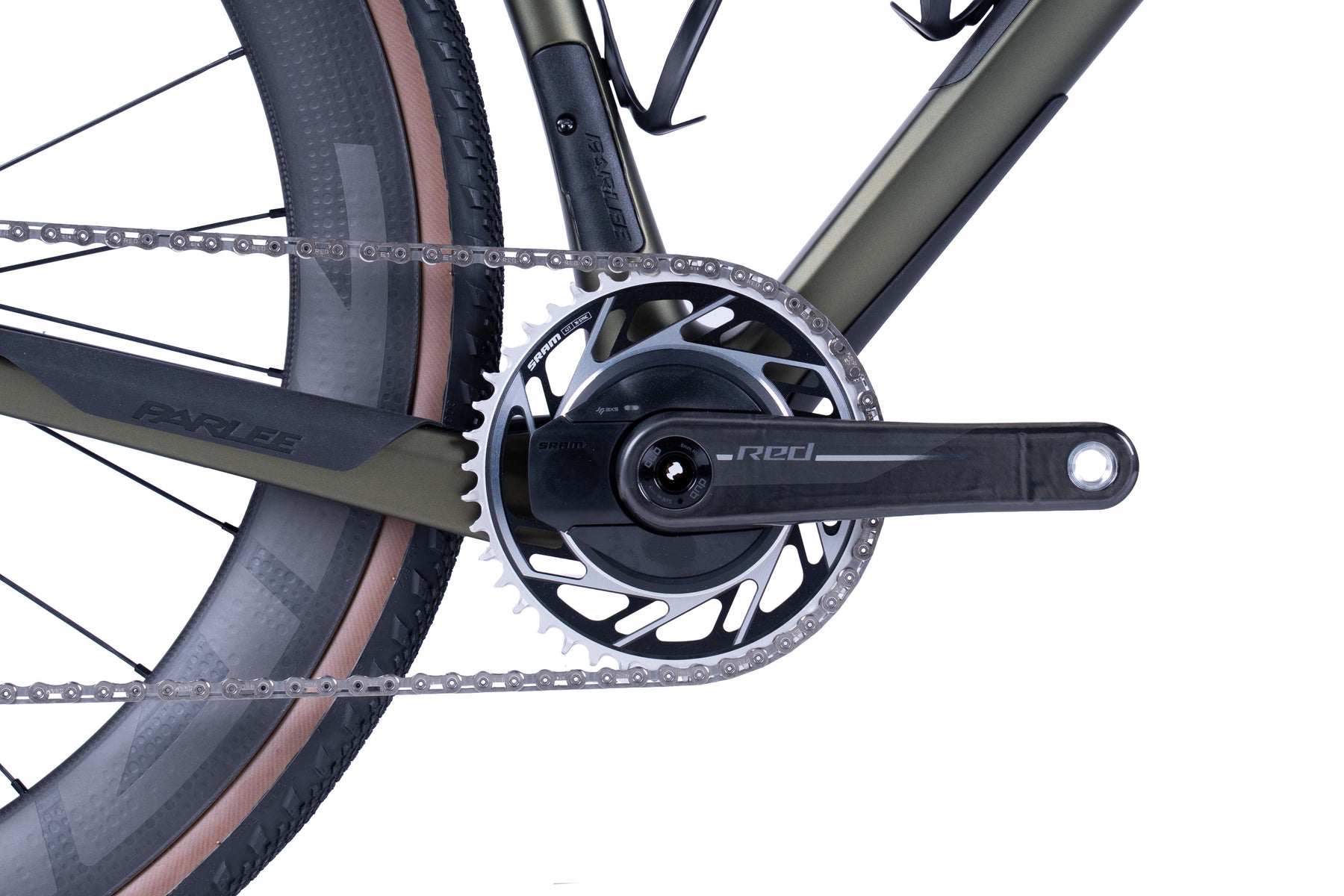

Crankset
SRAM RED XPLR Crankset with powermeter, 42T chainring (available in 165, 170, 172.5, 175mm lengths)
Bottom Bracket
T47, internal, 85.5mm width
Wheels
ZIPP 303 XPLR SW carbon wheelset, hookless, center-lock disc, ZR1 Disc Brake hub
Tires
Goodyear XPLR Inter 45mm, tubeless ready
Inner Tubes
Schwalbe

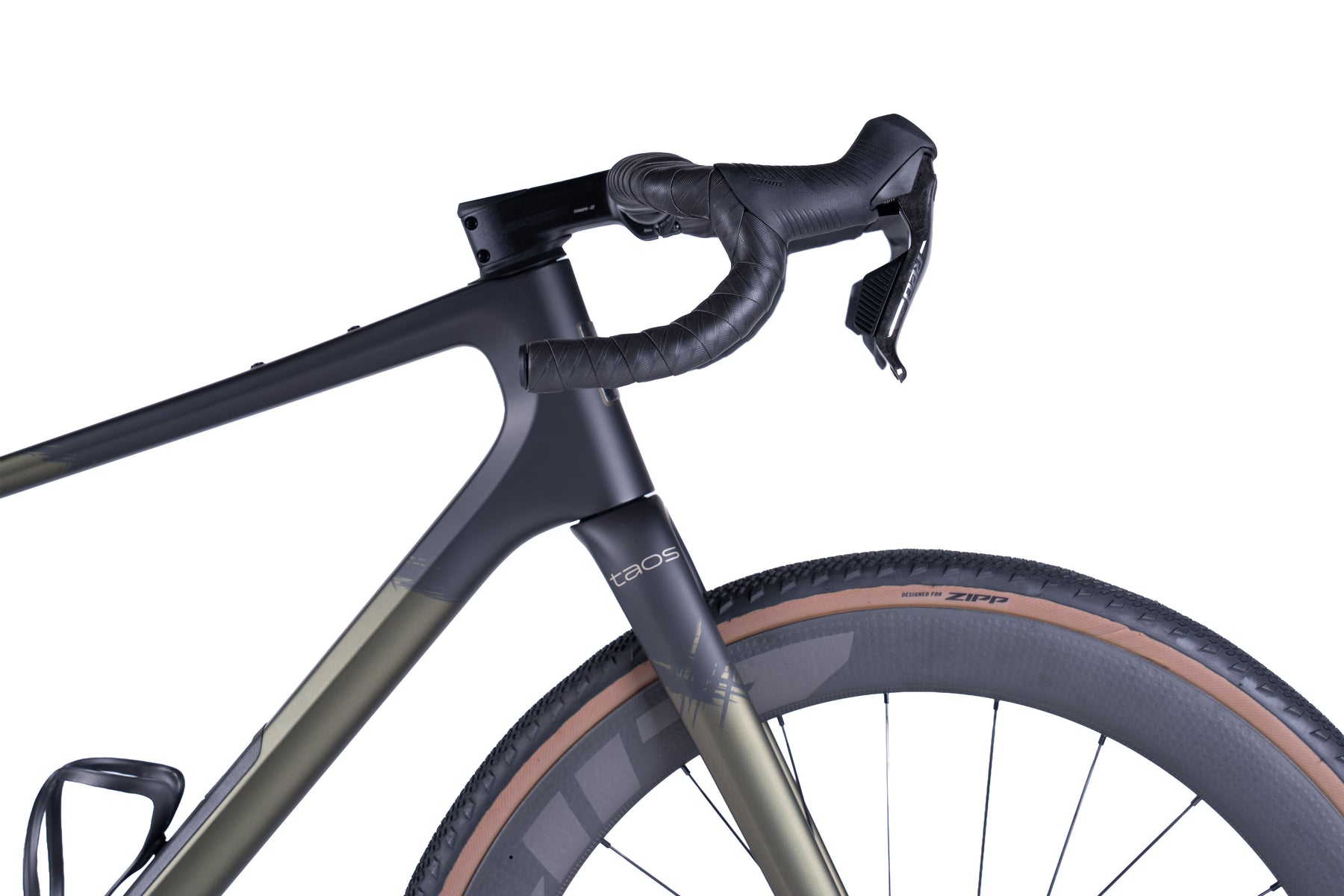

Handlebar
FSA K-Force AGX Carbon, 31.8mm diameter, integrated routing compatible
Stem
FSA SMR-II, integrated and semi-integrated routing compatible

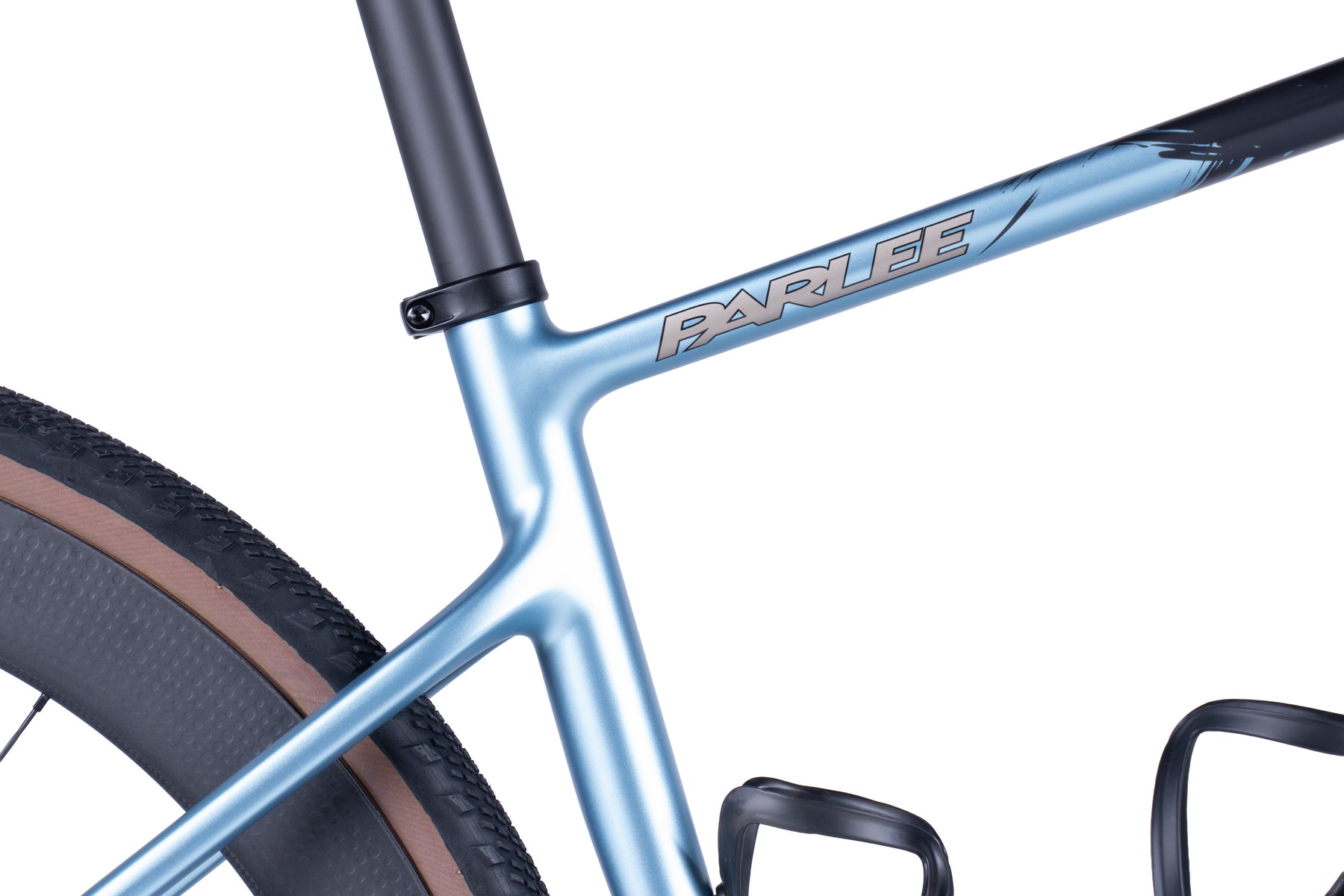

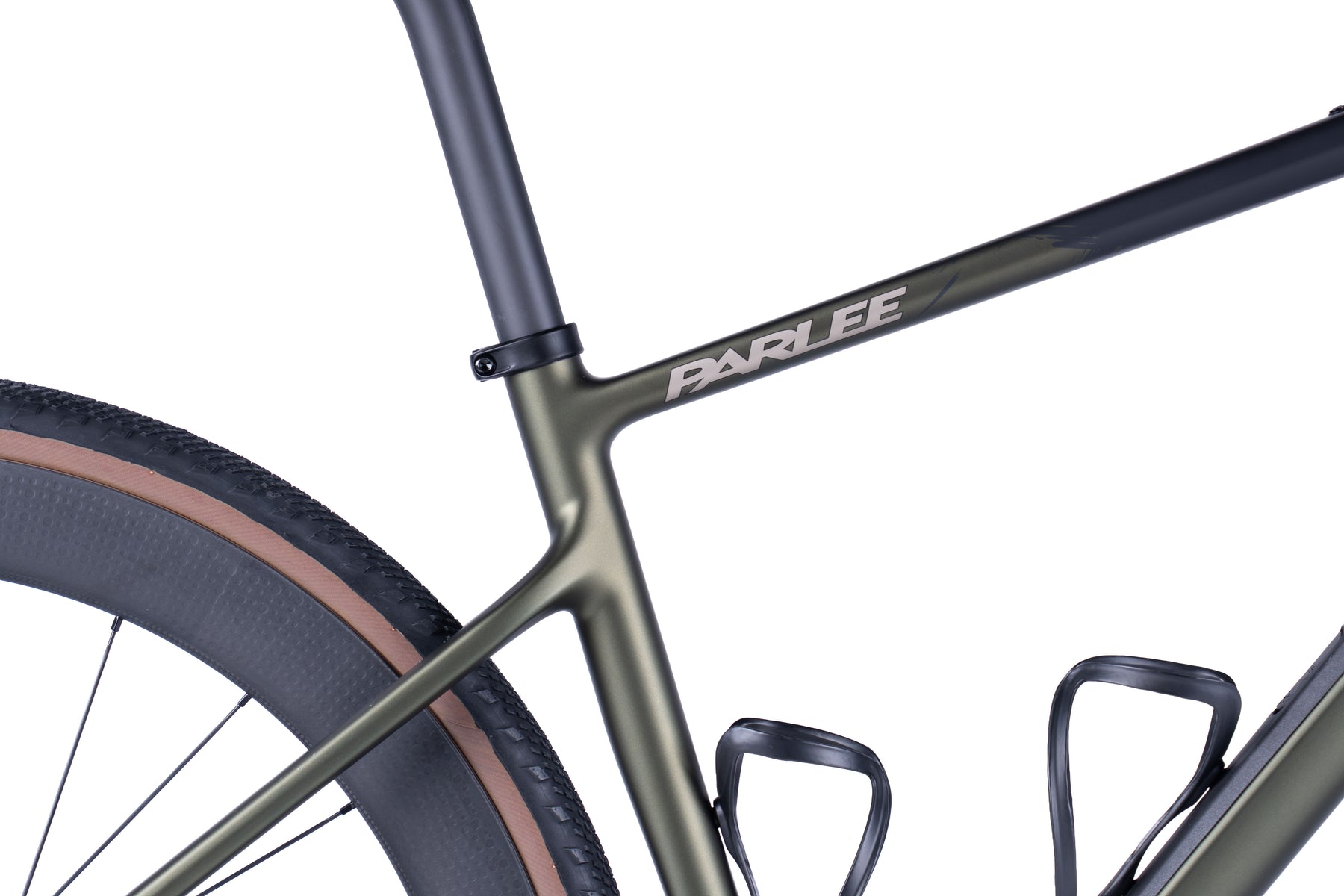

Seatpost
Parlee Carbon Seatpost, 0° offest, 31.6mm diameter
Saddle
Ergon SR Allroad Pro with carbon rails
Headset
Integrated IS52 upper and lower, stainless bearings
Front Derailleur Option
Braze-on, removable, includes 1x blanking panel
Flex-Fit Spacers
Included ENVE, FSA, and PRO short and tall top caps and universal fit cap

TECH & GEO SPECIFICATIONS

Frame Geometry

XXS
XS
S
M
L
XL
TTLength (virtual)
508
532
553
577
602
620
Reach
362
375
386
402
417
429
Stack
540
564
585
605
620
640
Head Angle
68.75
69.25
69.5
69.5
69.5
69.75
Seat Tube Angle
75
74.5
74.25
74
73.5
73.5
ST Length (Ctr-Ctr)
364
384
401
435
460
486
Chainstay Length
430
430
430
430
430
430
BB Drop
82
80
80
80
80
80
Fork Rake
45/51
45/51
45/51
45/51
45/51
45/51
Standover Height
700
735
765
791
810
833
Head Tube Length
90
115
136
158
174
194
Front Center
600
617
634
651
670
688
Wheelbase
1018
1028
1052
1069
1090
1106
Fork Length
425
425
425
425
425
425
